NuPort^®-LP-CT

Questions? Just call us

Product Information (pdf)

Patient Information (pdf)

Port catheter care (PDF)

The port system, developed from fluid mechanics
Implantable, venous, CT-compatible port.

The most effective solution for long-term vascular access from specialists. In order to achieve optimal cleansing and flow characteristics, we have intensively studied fluid mechanics during the development of the Nu-Flow^®chamber. Through the optimized port chamber geometry, we create turbine-like flow dynamics. This "small" cosmetically inconspicuous port, particularly suitable for cachectic or small patients, also has all the advantages of the NuPort^® family.

That this is also measurable can be seen here

The transparent septum also makes it possible to see into the chamber during implantation to monitor venting and flushing of the port. The tissue compatible titanium is CT/MRI compatible.

Port chamber
The elliptical chamber associated with the tangential outlet improves flow dynamics and reduces the risk of premature occlusion.

Connection
The connection mechanism enables safe connection of the catheter to the port base via audible and tactile feedback. These two detection functions ensure that the connection is properly secure.

The advantages at a glance

suitable for high pressure injection (contrast-CT compatible)
optimized for cachectic and small patients
greatly reduced risk of occlusion and infection
significantly improved flushing efficiency
minimal maintenance required
facilitates blunt preparation of the port pocket
MRI compatible up to 3-Tesla
many catheter variants

plus simplified

blood product administration
blood collection
parenteral nutrition
high viscosity medications

Specifications

NuPort^®-LP-CT Basic System
"Low-Profile/Armport"

Single lumen venous system for
Implantation by means of venous cutdown

Content:
NuPort^®-LP-CT, catheter, catheter fixation,
Huber cannula straight, irrigation cannula,
vein lifter, 10 ml syringe

NuPort^®-LP-CT Complete System
"Low-Profile/Armport"
with percutaneous introducer set

Single lumen venous system for
Implantation by means of percutaneous technique

Content:
NuPort^®-LP-CT Basic system,
introducer (Seldinger) needle,
Split-Sheath with dilator,
Guide wire with insertion aid, tunneler

Material

PortTitanium

SeptumSilicone

Volume

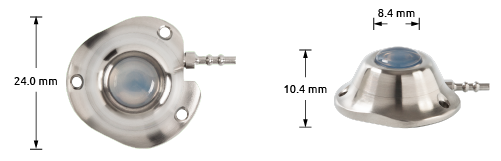

Total volume~ 0.3ml

Weight

Total weight8.0g

All catheters with rounded tip and length markings at 1 cm intervals, radiopaque.

Maximum Flow Rate and Pressure

Needle Size	20G	20G	22G
Catheter Size	6.6F/7.5F 8.0F/9.0F 9.6F	5.0F	5.0F/6.6F 7.5F/8.0F 9.0F/9.6F
Flow Rate	5 ml/s	2 ml/s	2 ml/s
Max. Pressure	300psi/20.6bar

The maximum flow rate or pressure setting specified above must not be exceeded during pressure injection via the NuPort^®-LP-CT.

Ordering Information

Catheter	Size	O.D.	I.D.	Length	Ref. without Introducer Set	Ref. with Introducer Set
Polyurethane	5.0F	1.75mm	1.05mm	70cm	LPA-005CP	LPA-005IP
Polyurethane	6.6F	2.20mm	1.28mm	70cm	LPA-066CP	LPA-066IP
Polyurethane	7.5F	2.50mm	1.15mm	70cm	LPA-075CP	LPA-075IP
Silastic^®-Silicone	8.0F	2.67mm	1.40mm	50cm	LPA-008CS	LPA-008IS
Polyurethane	9.0F	3.00mm	1.60mm	50cm	LPA-009CP	LPA-009IP

Flow theory

Fluid dynamics is the science of the physical behavior of fluids. Ludwig Prandtl created the theoretical foundations of fluid mechanics at the beginning of the last century in the technical department of the Physics Institute of the University of Göttingen. It was popularly called the "Lubricating Oil Faculty".

Fluid Mechanics

The laws of physics are the basis for why airplanes fly and why port housings from PHS Medical look a little different than you may be used to from other port catheters.

The measurable difference

In the FDA guidelines for the approval of ports, a defined measurement setup* is described, the so-called "Clearing Index". This indicates how much flushing volume is required to flush out (clean) a port chamber without leaving any residue. This test has also been adopted in the ISO standard for port catheter systems 10555-6**.

This can be used to illustrate the measurable differences between different port designs.

In a study by Norfolk Medical Inc., USA ***, the respective flushing characteristics were compared in a measurement of four different port systems. The difference between the system with a conventional cylindrical port chamber and central catheter outlet and our NuPort^® chamber geometry with tangentially positioned catheter outlet is clear:

Almost 40% more flushing volume is required with a conventional port for residue-free flushing.

The chamber geometry therefore makes the decisive difference in the flushing (cleaning) of port systems. Under certain circumstances, this is precisely the difference that prevents occlusion of the port system.

NuPort^® chamber, significantly improved flushing efficiency

C-Port^® chamber, improved flushing efficiency

Conventional cylindrical port chamber, inferior flushing efficiency

Average values chamber flushing volume*

Port	Port Chamber	Flushing volume difference in percent
NuPort^®-CT	Elliptical tangential outlet	Reference value
C-Port^®-CT	Elliptical central baseline outlet	+ 6.9%
Conventional Port A High Pressure Injection	Cylindrical central outlet	+ 23.3%
Conventional Port B Standard	Cylindrical central outlet	+ 39.5%

* FDA "Guidance on 510(k) Submissions for Implanted Infusion Ports".
** DIN EN ISO 10555-6, Annex B "Determination of the flushing volume (clearing index)".
*** Measured values determined by Norfolk Medical, Inc. USA with reference to FDA "Guidance on 510(k) Submissions for Implanted Infusion Ports" and DIN EN ISO 10555-6

NuPort®-LP-CT
